Square D 60A 3PH 240v Disconnect D322N

In stock

SKU: 100000018200 Category: Tags: ,

Get Quote

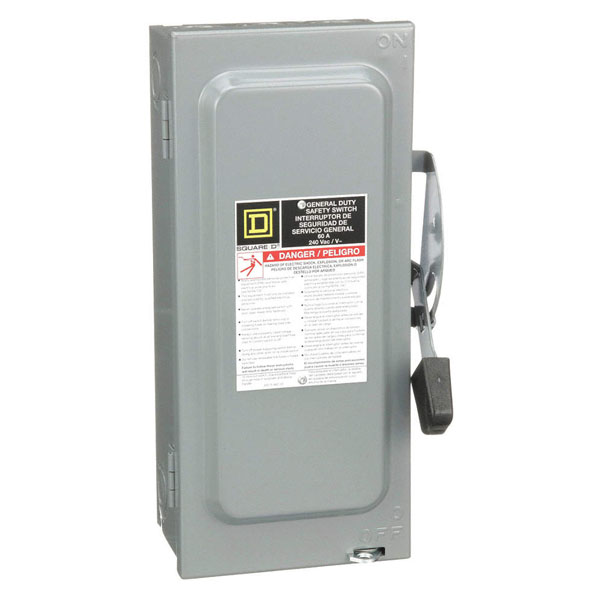

The Square D by Schneider Electric 60 Amp 240 Volt 3-Pole 3-Phase Indoor Fusible General Duty Safety Switch is designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. The switch is UL listed, File E2875, and meet or exceed the NEMA standard KS1. For more than 100 years the Square D brand safety switch has been the unchallenged leader in the market. We’ve continued our tradition of innovation, developing new features that provide an unsurpassed level of performance, reliability, safety and ease of installation. This tradition has resulted in the Square D brand being preferred two to one over our closest competitor.

  • 4-wire design with 3 blades and fuse holders and 1 neutral
  • 120/240 Volt AC
  • 60 Amp
  • NEMA type 1 metallic enclosure for indoor use
  • 3.0/10.0 HP 240 VAC single phase (standard/maximum)
  • 7.5/15.0 HP 240 VAC 3 phase (standard/maximum) or corner grounded delta system – refer to data bulletin 2700DB0202
  • Terminal lug data: one #12-3 aluminum or #14-3 copper
  • 100 kA UL listed short circuit withstand rating maximum with class R fuses and class R kit RFK03H properly installed
  • Fusible switch – cartridge fuse class H, K or R
  • Neutral bar included
  • UL listed
  • Protection from live parts with cover closed
  • Protection from arcing during switching
  • Provides emergency disconnecting means
  • Protects switching components from environment
  • Tangential knockouts for ease of installation
  • OSHA lockout
  • California residents see Prop 65 WARNINGS

Brand

Square D

Weight 6.640 lbs
Dimensions 16.50 × 8.00 × 5.50 in
Brand

Square D
