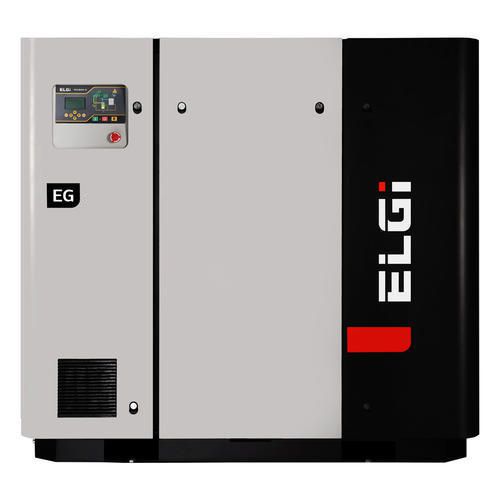

ELGI 30HP | Base | 3PH | 208-230/460V | 100-175PSI | EG22

SKU: 100000190050 Category:

Get Quote

Free Shipping

Ships Factory Direct

Model: EG22-125 Drive Motor: 30 HP TEFC
Air Delivery: 134 CFM Working Pressure: 125 PSIG
Sound Level:  69 dBA Motor Efficiency: 93.6%
Voltage: 230/460 Volt (3-ph) Outlet Connection: 1.25” NPT
Control Type: Load/No Load Dimensions:   56” x 28” x 58”

Package Features:

  • Lifetime Warranty on Airend
    • High efficiency, slow speed, heavy duty air end
  • 48 hour “Uptime” Assurance Plan
  • High Efficiency TEFC motor with Class F insulation, 1800 RPM
  • Direct coupled drive group, flexible jaw coupling with snap wrap element
  • Lowest Oil Carryover in the Industry
    • 3 stage air/oil separation system with less than 1 PPM
  • 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
    • Coolers mounted in insulated compartment providing excellent access for cleaning
  • Twin cooling fans for maximum cooling capacity and efficiency
  • High capacity “spin on” 10-micron oil filter element
  • “State of the Art” microprocessor controller
  • UL/cUL compliant control panel with premium electrical components. Phase monitor included
  • Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items.
  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
    • Air taken from outside the package ensuring cool air source
  • Superior stainless-steel control line tubing
  • Rigid piping with high quality flanged connections for leak free operation
  • Moisture separator with automatic drain, factory mounted
  • Full complement of safety features
  • Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
  • Lifetime Warranty on air end with 5-year parts & labor warranty on the motor, coolers, and reservoirLead-time:     In-Stock
    FOB:                Charlotte, NC

    Optional Features:

No-Loss Drain
Food Grade Lube

Brand

ELGI

Weight 1000 lbs
Dimensions 72 × 60 × 48 in
Brand

ELGI

PSI

100, 125, 150, 175

Voltage

3/60/208-230,460V
