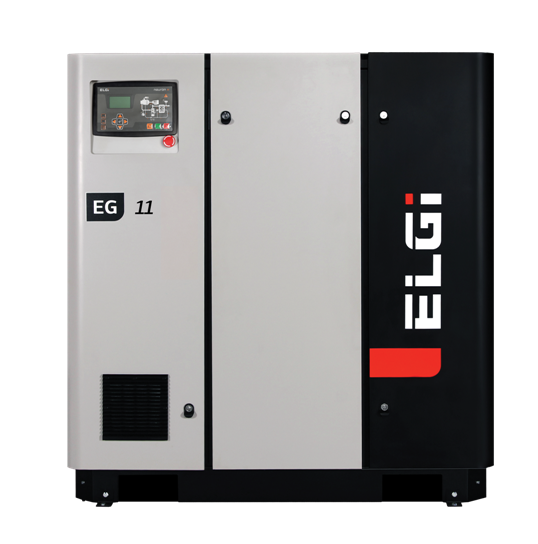

ELGI 15HP | VFD | Base | 3PH | 460V | 100-175PSI | EG11V

SKU: 100000190715 Category:

Get Quote

Free Shipping

Ships Factory Direct

Model:             EG11V Drive Motor Horsepower: 15 HP
Air Delivery: 62 CFM Working Pressure: 125 PSIG
Sound Level: 69 dBA Motor Efficiency: 92.4%
Voltage: 460 Volt Control Type:  Variable Speed
Outlet Connection: 1.25” NPT Dimensions:   56” X 28” X 58”



Package Features:

  • Lifetime Warranty on Airend
    • High efficiency, slow speed, heavy duty air end
  • 48 hour “Uptime” Assurance Plan
  • High Efficiency TEFC motor with Class F insulation, 1800 RPM
  • Direct coupled drive group, flexible jaw coupling with snap wrap element
  • Danfoss, high efficiency, integrated variable speed drive control providing superior performance through entire operating range.
    • Built in DC chokes, no line reactor required
  • Lowest Oil Carryover in the Industry
    • 3 stage air/oil separation system with less than 1 PPM
  • 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications. Coolers mounted in insulated compartment providing excellent access for cleaning
  • Twin cooling fans for maximum cooling capacity and efficiency
  • High capacity “spin on” 10-micron oil filter element
  • “State of the Art” microprocessor controller
  • UL/cUL compliant control panel with premium electrical components. Phase monitor included
  • Full acoustical enclosure complete with powder coated panels & hinged doors for ease of maintenance
  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
  • Superior stainless-steel control line tubing
  • Rigid piping with high quality flanged connections for leak free operation
  • Moisture separator with automatic drain, factory mounted
  • Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
  • Lifetime Warranty on air end with 5-year parts & labor warranty on the VFD drive, motor, coolers, and reservoir




Optional Features:

No-Loss Drain Food Grade Lube 230V Transformer





EGRD Refrigerated Dryer & Filter

Dryer Model:   EGRD-80
Part Number: B000506530363
Connection Size: 1”
Voltage:          115 Volt, Single Phase
Dryer Dimensions: 15” x 18” x 31”
Weight: 84 lbs.
Warranty:       1 Year Package, 5 Year Heat Exchanger
Refrigerant:    R134a
Pre-Filter Model: EPFP75

Brand

ELGI

Weight 1000 lbs
Dimensions 72 × 60 × 48 in
Brand

ELGI

Voltage

3/60/460V

PSI

100, 125, 150, 175
