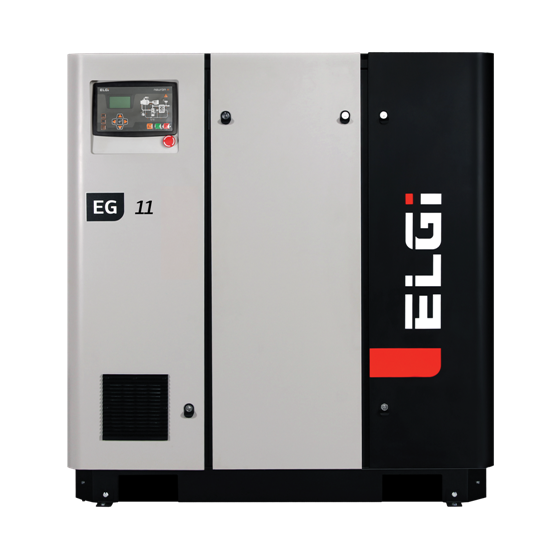

ELGI 15PH | Base | 3PH | 208-230/460V | 100-175PSI | EG11


SKU: 100000189900 Categories: ,

Get Quote

Free Shipping

Ships Factory Direct

Model: EG11-125 Drive Motor Horsepower: 15 HP Voltage: 460 Volt Working Pressure: 125 PSIG Air Delivery: 62 CFM Motor Efficiency: 92.4% Outlet Connection: 1.25” NPT Control Type: Load / No Load Sound Level: 69 dBA Dimensions: 56” X 28” X 58”   Package Features: Lifetime Warranty on Airend High efficiency, slow speed, heavy duty air end 48 hour “Uptime” Assurance Plan High Efficiency TEFC motor with Class F insulation, 1800 RPM Direct coupled drive group, flexible jaw coupling with snap wrap element Lowest Oil Carryover in the Industry 3 stage air/oil separation system with less than 1 PPM 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications. Coolers mounted in insulated compartment providing excellent access for cleaning Twin cooling fans for maximum cooling capacity and efficiency High capacity “spin on” 10-micron oil filter element “State of the Art” microprocessor controller UL/cUL compliant control panel with premium electrical components. Phase monitor included Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items. 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life. Air taken from outside the package ensuring cool air source Superior stainless-steel control line tubing Rigid piping with high quality flanged connections for leak free operation Moisture separator with automatic drain, factory mounted Full complement of safety features Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life Lifetime Warranty on air end with 5-year parts & labor warranty on the motor, coolers, and reservoir Optional Features:  No-Loss Drain Food Grade Lube

Weight 1000 lbs
Dimensions 72 × 60 × 48 in



100, 125, 150, 175
