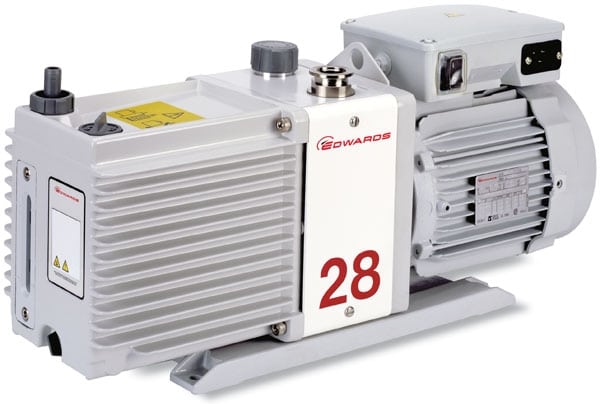

E2M28 Rotary Vane Vacuum Pump 1 Phase 115V

SKU: 100000196281 Category:

Get Quote

Free Shipping

Ships Factory Direct

The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor. The Edwards E2M28 Vacuum Pump is discounted, brand-new, and includes free shipping with a 1 year warranty. The Edwards E2M28 Vacuum Pump is ready for immediate shipment.

The Edwards E2M28 Rotary Vane Vacuum Pump includes:

  • 1 Year Full Parts and Labor Warranty
  • Edwards Ultragrade 19 Oil
  • Power Cord
  • Manufacturer’s Documentation
  • Operator’s Manual

Edwards E2M28 Vacuum Pump Technical Specifications

Displacement (swept volume)
50 Hz 32.2 m3h-1 / 19 ft3min-1
60 Hz 38.9 m3h-1 / 22.3 ft 3min-1
Speed (Pneurop 6602)
50 Hz 27.5 m3h-1 / 16.2 ft 3min-1
60Hz 33.0 m3h-1 / 19.5 ft 3min-1
Ultimate vacuum (total pressure)
without gas ballast 1 x 10-3 mbar / 7.5 x 10-4 Torr
with gas ballast 1.5 x 10-2 mbar / 1.1 x 10-2 Torr
with Fomblin® 1 x 10-2 mbar / 7.5 x 10-3 Torr
Inlet connection NW25 flange
Outlet connection** Nozzle 15 mm external Ø removable from 3/4 in BSP tapped hole
Max allowed pressure at outlet 0.5 bar gauge / 7 psig
Max inlet pressure for water vapour 30 mbar / 23 Torr
Max water vapour pumping rate 0.7 kg h-1
Operating temperature range 13 – 40 °C
Nominal rotation speed 1440 / 1720 rpm
Motor power 50 Hz 0.75 kW
Motor power 60 Hz 0.90 kW
Power Connector 1-ph* IEC EN60320 C19
Weight 44 kg / 97 lbs
Noise 57 dB(A) @ 50 Hz
Oil capacity – max 1.5 litre
Oil capacity – min 1.2 litre
Recommended oil (supplied) Ultragrade 19
Electrical Requirements 100-120V, 50/60Hz (For 230V option please contact)
