E2M18 Rotary Vane Vacuum Pump 1 Phase 115V
$4,395.00
Get Quoted. Get Approved. Get Working!
Get the paperwork you need for your financial department.

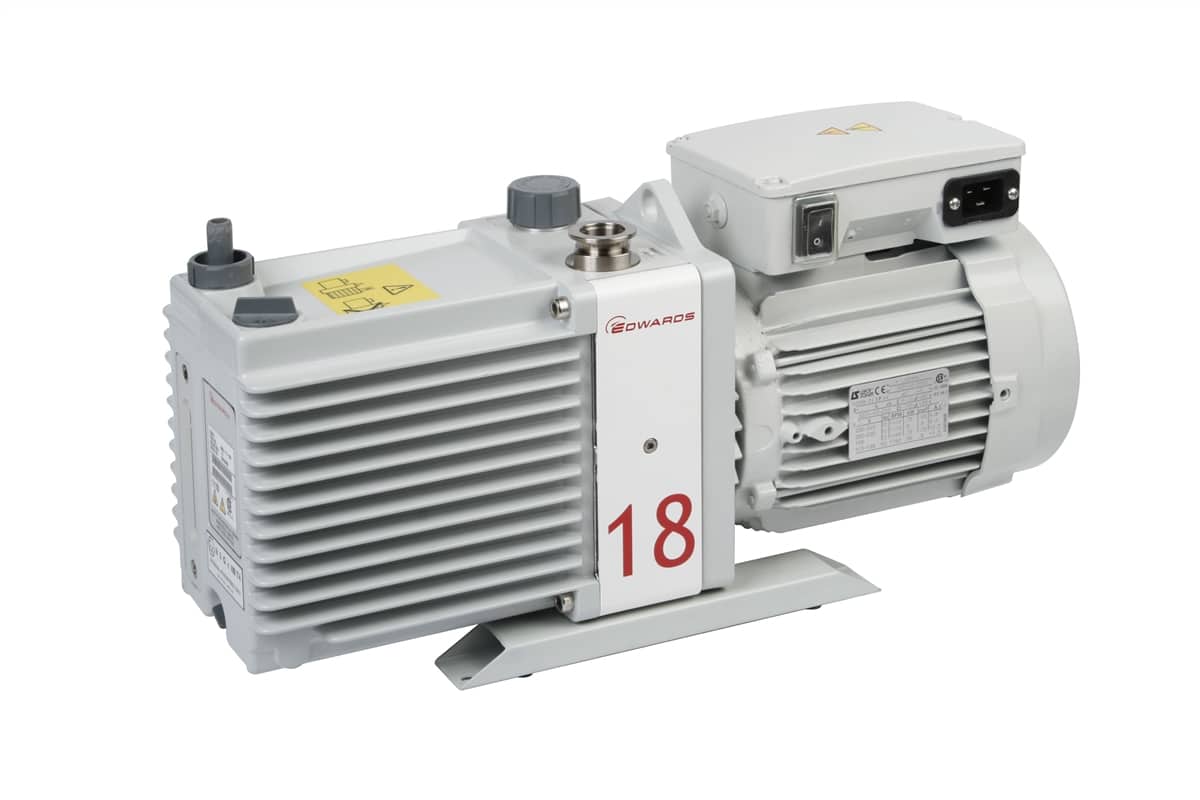

E2M18 Rotary Vane Vacuum Pump 1 Phase 115V
Ships Factory Direct
The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor. The Edwards E2M18 Vacuum Pump is discounted, brand-new, and includes free shipping with a 1 year warranty. The Edwards E2M18 Vacuum Pump is ready for immediate shipment.
The Edwards E2M18 Vacuum Pump includes:
- 1 Year Full Parts and Labor Warranty
- 1 Liter of Edwards Ultragrade 19 Oil
- Power Cord
- Manufacturer’s Documentation
- Operator’s Manual
Edwards E2M18 Vacuum Pump Technical Specifications
| Displacement (50Hz) | 20.5 m3h-1 / |
| Displacement (60Hz) | 25.0 m3h-1 / |
| Speed (Pneurop 6602) 50 Hz | 17.0 m3h-1 / |
| Speed (Pneurop 6602) 60Hz | 20.4 m3h-1 / |
| Ultimate vacuum (total pressure) | |
| without gas purge | 1 x 10-3 mbar / |
| with gas purge | 1.5 x 10-1 mbar / |
| with Fomblin® | 1 x 10-2 mbar / |
| Inlet connection | NW25 |
| Outlet connection** | Nozzle 15 mm external Ø removable from 3/4 in BSP tapped hole |
| Max permitted pressure at outlet | 0.5 bar gauge / |
| 7 psig | |
| Max inlet pressure | 20 mbar / |
| for water vapour | 15 Torr |
| Max water vapour pumping rate | 0.3 kg h-1 |
| Operating temp range | 13-40°C |
| Nominal Rotation speed 50/60Hz | 1440/1720 rpm |
| Power connector 1-ph* | IEC EN60320 C19 |
| Motor power 50 Hz | 0.55 kW |
| Motor power 60 Hz | 0.75 kW |
| Weight | 39 kg / 86 lbs |
| Noise @ 50Hz | 57 dB(A) |
| Oil capacity – max | 1.05 litre |
| Oil capacity – min | 0.75 litre |
| Recommended oil | Ultragrade 19 |
| Weight | 1000 lbs |
|---|---|
| Dimensions | 72 × 60 × 48 in |
| Brand | EDWARDS VACUUM |
Brand
Edwards Vacuum
