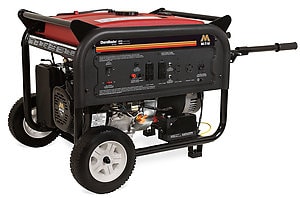

MI-T-M 8000 WATT GENERATOR

SKU: 100000185315 Category:

Get Quote

Free Shipping

Ships Factory Direct

The ChoreMaster® Series comes with a Mi-T-M OHV engine and are designed to provide maximum power for contractors and electrical back-up for power outages.

Alternator: Total harmonic distortion (THD) less than 6% · Copper and aluminum windings

Frame: Low profile, compact design · Powder coated wraparound frame with 1-inch steel tubing

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging

Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.

Specifications

Max. AC Output 8000 watts
Rated AC Output 7000 watts
Displacement/ Engine 420cc Mi-T-M OHV with Electric Start – Battery Included
Alternator Brushed 120V/240V, 60Hz
Max. Amps (120V/240V)66.6/33.3
Cont. Amps (120V/240V) 58.3/29.2
Receptacles (2) 120V, 20A GFCI Duplex; (1) 120V, 30A Twist Lock; (1) 120V/240V, 30A Twist Lock
Circuit Breakers (1) Main Circuit Breaker; (2) 20A Circuit Breakers, Single Pole; (1) 10A DC Breaker
Rated Speed 3600 RPM
Decibel Rating 74.0
Fuel Capacity 6.6 gallon
Run Time (At Full Load) 6.0 hours
Idle Control Yes
Wheel Kit Yes – Includes Tires and Rubber Gripped Handles

Weights & Dimensions

Net Weight 195.00 lbs.
Shipping Weight 237.00 lbs.
Length39.10 in.
Width 28.70 in.
Height 30.60 in.

Brand

Mi-T-M

Mi-T-M
Weight 1000 lbs
Dimensions 72 × 60 × 48 in
Brand

Mi-T-M
