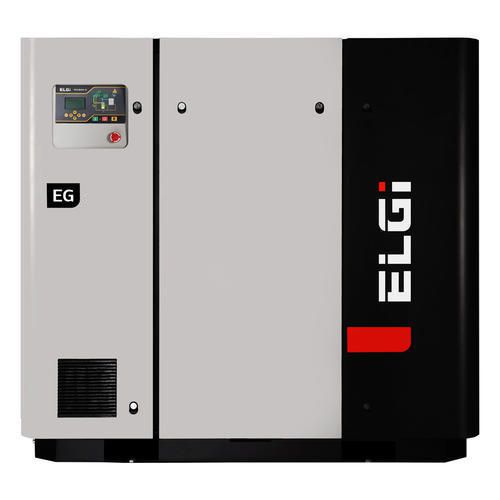

ELGI 100HP | VFD | Base | 3PH | 460V | 100-175PSI | EG75V
Ships Factory Direct
|Model:||EG75V||Drive Motor:||100 HP TEFC|
|Air Delivery:||450 CFM||Working Pressure:||125 PSIG|
|Sound Level:||69 dBA||Motor Efficiency:||95.4%|
|Voltage:||460 Volt||Outlet Connection:||2” NPT|
|Control Type:||Variable Speed||Dimensions:||81” x 50” x 77”|
- Lifetime Warranty on Airend
- High efficiency, slow speed, heavy duty air end
- 48 hour “Uptime” Assurance Plan
- High Efficiency TEFC motor with Class F insulation, 1800 RPM
- Direct coupled drive group, flexible jaw coupling
- Lowest Oil Carryover in the Industry
- 3 stage air/oil separation system with less than 1 PPM
- 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
- Coolers mounted in insulated compartment providing excellent access for cleaning
- Twin cooling fans for maximum cooling capacity and efficiency
- “State of the Art” microprocessor controller
- UL/cUL compliant control panel with premium electrical components. Phase monitor included
- Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items.
- 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
- Air taken from outside the package ensuring cool air source
- Superior stainless-steel control line tubing
- Rigid piping with high quality flanged connections for leak free operation
- Moisture separator with automatic drain, factory mounted
- Full complement of safety features
- Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
- Lifetime Warranty on airend with 5-year parts & labor warranty on the motor, coolers, and reservoir, 3-year VFD
FOB: Charlotte, NC
|No-Loss Drain||Food Grade Lube|
|Dimensions||72 × 60 × 48 in|
100, 125, 150, 175
