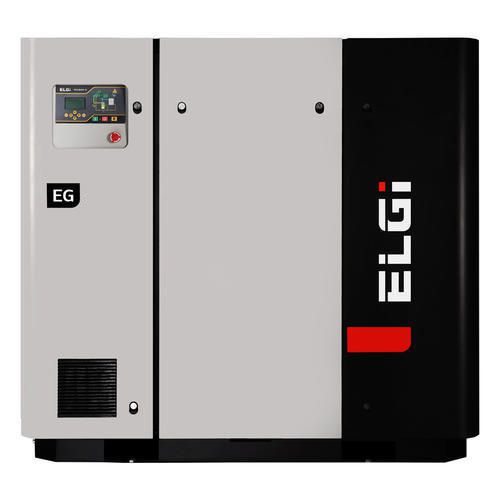

ELGI 100HP | Base | 3PH | 208-230/460V | 100-200PSI | EG75
$42,539.00 – $52,685.00
Get Quoted. Get Approved. Get Working!
Get the paperwork you need for your financial department.
ELGI 100HP | Base | 3PH | 208-230/460V | 100-200PSI | EG75

Ships Factory Direct
Model: | EG75-125 | Drive Motor: | 100 HP TEFC |
Air Delivery: | 450 CFM | Working Pressure: | 125 PSIG |
Sound Level: | 69 dBA | Motor Efficiency: | 95.4% |
Voltage: | 460 Volt | Outlet Connection: | 2” NPT |
Control Type: | Load/No Load with Modulation | Dimensions: | 81” x 50” x 77” |
Package Features:
- Lifetime Warranty on Airend
- High efficiency, slow speed, heavy duty air end
- 48 hour “Uptime” Assurance Plan
- High Efficiency TEFC motor with Class F insulation, 1800 RPM
- Direct coupled drive group, flexible jaw coupling
- Lowest Oil Carryover in the Industry
- 3 stage air/oil separation system with less than 1 PPM
- 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
- Coolers mounted in insulated compartment providing excellent access for cleaning
- Twin cooling fans for maximum cooling capacity and efficiency
- “State of the Art” microprocessor controller
- UL/cUL compliant control panel with premium electrical components. Phase monitor included
- Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items.
- 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
- Air taken from outside the package ensuring cool air source
- Superior stainless-steel control line tubing
- Rigid piping with high quality flanged connections for leak free operation
- Moisture separator with automatic drain, factory mounted
- Full complement of safety features
- Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
- Lifetime Warranty on air end with 5-year parts & labor warranty on the motor, coolers, and reservoir
Lead-time: In-Stock
FOB: Charlotte, NCOptional Features:
No-Loss Drain | Food Grade Lube |
Weight | 1000 lbs |
---|---|
Dimensions | 72 × 60 × 48 in |
Brand | ELGI |
PSI | 100, 125, 150, 175, 200 |
Voltage | 3/60/208-230,460V |
