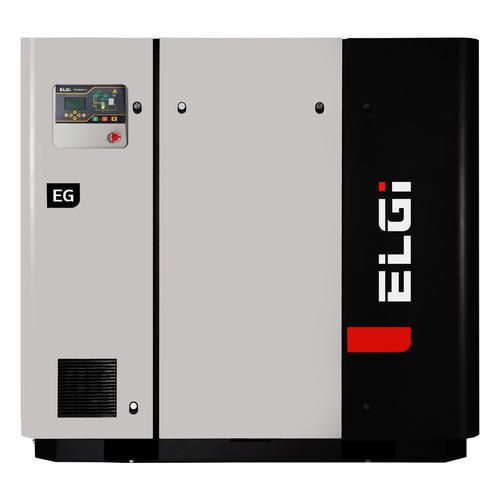

ELGI 60HP | VFD | Base | 3PH | 460V | 100-150PSI | EG45V
$43,853.00
Get Quoted. Get Approved. Get Working!
Get the paperwork you need for your financial department.
ELGI 60HP | VFD | Base | 3PH | 460V | 100-150PSI | EG45V
Ships Factory Direct
Model: EG45V Drive Motor Horsepower: 60 HP Air Delivery: 266 CFM Working Pressure: 125 PSIG Sound Level: 68 dBA Motor Efficiency: 95% Voltage: 460 Volt Control Type: Variable Speed Outlet Connection: 1.5” NPT Dimensions: 67” X 44” X 62” Package Features: Lifetime Warranty on Airend High efficiency, slow speed, heavy duty air end 48 hour “Uptime” Assurance Plan High Efficiency TEFC motor with Class F insulation, 1800 RPM Dan Foss Premium VSD with built in DC chokes – no line reactor required Direct coupled drive group, flexible jaw coupling with snap wrap element Lowest Oil Carryover in the Industry 3 stage air/oil separation system with less than 1 PPM 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications. Coolers mounted in insulated compartment providing excellent access for cleaning Twin cooling fans for maximum cooling capacity and efficiency High capacity “spin on” 10-micron oil filter element “State of the Art” microprocessor controller UL/cUL compliant control panel with premium electrical components. Phase monitor included Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items. 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life. Air taken from outside the package ensuring cool air source Superior stainless-steel control line tubing Rigid piping with high quality flanged connections for leak free operation Moisture separator with automatic drain, factory mounted Full complement of safety features Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life Lifetime Warranty on airend with 5-year parts & labor warranty on the motor, coolers, and reservoir, 3-year VFD Lead-time: In-Stock FOB: Charlotte, NC Optional Features: No-Loss Drain Food Grade Lube
Weight | 1000 lbs |
---|---|
Dimensions | 72 × 60 × 48 in |
Brand | ELGI |
Voltage | 3/60/460V |
PSI | 100, 125, 150 |
