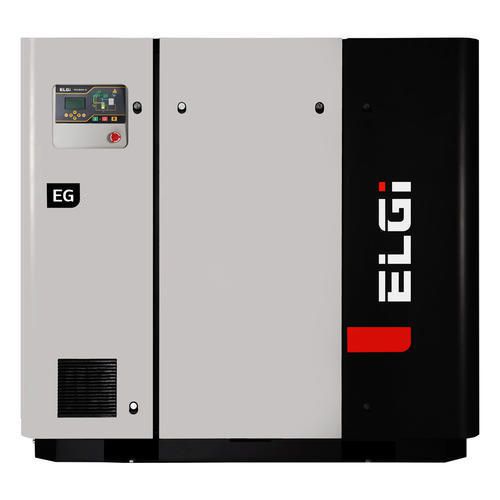

ELGI 40HP | VFD | Base | 3PH | 460V | 100-150PSI | EG30V


SKU: 100000190838 Category:

Get Quote

Free Shipping

Ships Factory Direct

Model:             EG30V Drive Motor Horsepower: 40 HP
Air Delivery: 178 CFM Working Pressure: 125 PSIG
Sound Level: 68 dBA Motor Efficiency: 94.1%
Voltage: 460 Volt Control Type: Variable Speed
Outlet Connection: 1.25” NPT Dimensions: 67” X 44” X 62”


Package Features:

  • Lifetime Warranty on Airend
    • High efficiency, slow speed, heavy duty air end
  • 48 hour “Uptime” Assurance Plan
  • High Efficiency TEFC motor with Class F insulation, 1800 RPM
  • Dan Foss Premium VSD with built in DC chokes – no line reactor required
  • Direct coupled drive group, flexible jaw coupling with snap wrap element
  • Lowest Oil Carryover in the Industry
    • 3 stage air/oil separation system with less than 1 PPM
  • 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications. Coolers mounted in insulated compartment providing excellent access for cleaning
  • Twin cooling fans for maximum cooling capacity and efficiency
  • High capacity “spin on” 10-micron oil filter element
  • “State of the Art” microprocessor controller
  • UL/cUL compliant control panel with premium electrical components. Phase monitor included
  • Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items.
  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
    • Air taken from outside the package ensuring cool air source
  • Superior stainless-steel control line tubing
  • Rigid piping with high quality flanged connections for leak free operation
  • Moisture separator with automatic drain, factory mounted
  • Full complement of safety features
  • Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
  • Lifetime Warranty on airend with 5-year parts & labor warranty on the motor, coolers, and reservoir, 3-year VFD

    Lead-time:     In-Stock

FOB:                Charlotte, NC

Optional Features:

No-Loss Drain Food Grade Lube 230V Transformer
Weight 1000 lbs
Dimensions 72 × 60 × 48 in





100, 125, 150
