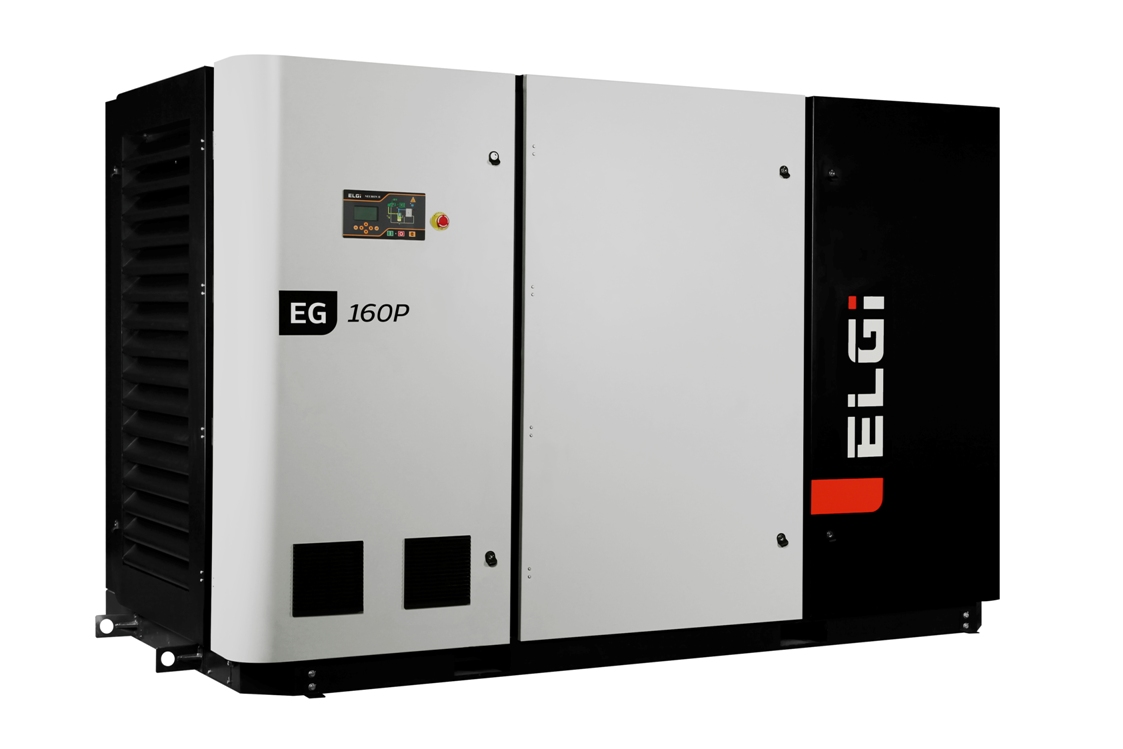

ELGI 200HP | Base | 3PH | 460V | 100-175PSI | EG160P


SKU: 100000190661 Category:

Get Quote

Free Shipping

Ships Factory Direct

Model: EG160P-125 Drive Motor: 200 HP TEFC
Air Delivery: 850 CFM Working Pressure: 125 PSIG
Sound Level: 75 dBA Motor Efficiency: 96.2%
Voltage: 460 Volt Outlet Connection: 2.5” NPT
Control Type: Load/No Load with Modulation Dimensions: 111” x 65” x 84”


Premium Features include:

  • Lifetime Warranty on Airend
    • High efficiency, slow speed, heavy duty air end
  • 48 hour “Uptime” Assurance Plan
  • High Efficiency TEFC motor with Class F insulation, 1800 RPM
  • Direct coupled drive group, flexible jaw coupling
  • Lowest Oil Carryover in the Industry
    • 3 stage air/oil separation system with less than 1 PPM
  • 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
    • Coolers mounted in insulated compartment providing excellent access for cleaning
  • Twin cooling fans for maximum cooling capacity and efficiency
  • “State of the Art” microprocessor controller
  • UL/cUL compliant control panel with premium electrical components. Phase monitor included
  • Full acoustical enclosure complete with powder coated panels & hinged doors providing easy access to maintenance items.
  • 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
    • Air taken from outside the package ensuring cool air source
  • Superior stainless-steel control line tubing
  • Rigid piping with high quality flanged connections for leak free operation
  • Moisture separator with automatic drain, factory mounted
  • Full complement of safety features
  • Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
  • Lifetime Warranty on air end with 5-year parts & labor warranty on the motor, coolers, and reservoir

Lead-time:            In-Stock
FOB:                      Charlotte, NC

Optional Features:

No-Loss Drain Food Grade Lube
Weight 1000 lbs
Dimensions 72 × 60 × 48 in



100, 125, 150, 175
