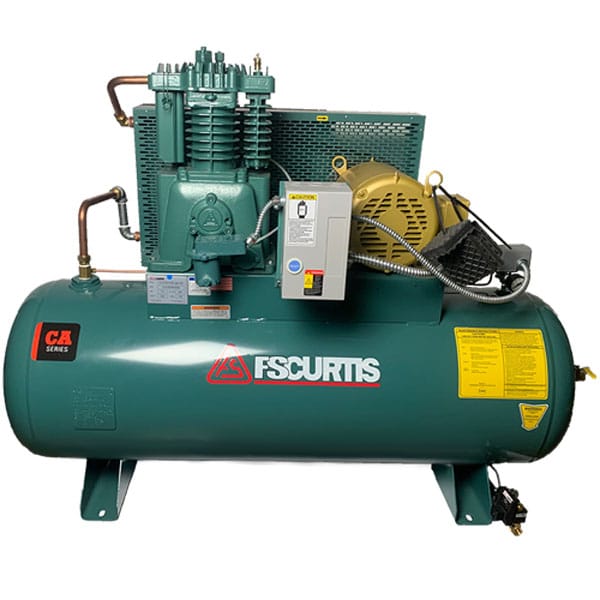

Curtis 5HP 80 Gallon | 18.5 CFM at 175 PSI | CA E57 1Phase Horizontal UltraPack 208-230V

SKU: 100000032305 Category: Tags: , , ,

Get Quote

Ships Factory Direct


Free Shipping

Ships Factory Direct

CA Series compressors aren’t just built to handle harsh environments — they’re also available in a wide range of configurations to meet your exact application. You’ll get the rugged construction you desire in the configuration you need.

For automotive, light industrial and other challenging applications, CA Series compressors are built to last. Components are selected based on durability and performance, ensuring that your CA Series compressor delivers reliable performance in demanding applications. Precision-machined components and a dedication to materials of construction that are meant for real world working conditions further assure long-term durability.

CA Series compressors are already an outstanding value, and an FS-Curtis Ultra Pack gives you even more. An Ultra Pack includes a CA Series compressor fully packaged with the most common options and accessories. You’ll save money and time by getting it all in one package, and you’ll be assured of increasing air quality while reducing maintenance needs. Industry-leading five-year bumper-to-bumper warranty available.

The Most Durable Pump Construction Available – Meticulous Material Selection Ensures Long-Term Reliability.

100% cast-iron cylinders and cylinder heads
Long-lasting, corrosion-resistant crankshaft
Reduces thermal stress for increased reliability
Deep-finned cast-iron cylinders and cylinder head for cool operation
Slow-turning pump increases pump life
Industrial Design – The Most Robust Reciprocating Air Compressor In Its Class

Provides higher pressures, better efficiency and longer life
Ready to handle rugged, heavy-duty applications
Quality Components – For Extended Product Life And Continuous Performance.

Industrial-grade main roller bearings are precision fit for support of all rotating parts
High-flow, heavy-duty stainless-steel valve system delivers more cfm per horsepower
Robust intercooler increases compressor efficiency
Metal intake filter/silencer is superior to plastic
Heavy-duty stamped-steel belt guard
Suction valve head unloaders for continuous running air compressors

Features
Simplex

Simplex compressors are well suited for common applications where only one compressor is needed.

Magnetic motor starter
Manual tank drain
Oil sight glass
Horizontal or vertical tank configurations available
Factory oil filled
Splash lubricated
ASME air receiver (vertical or horizontal)

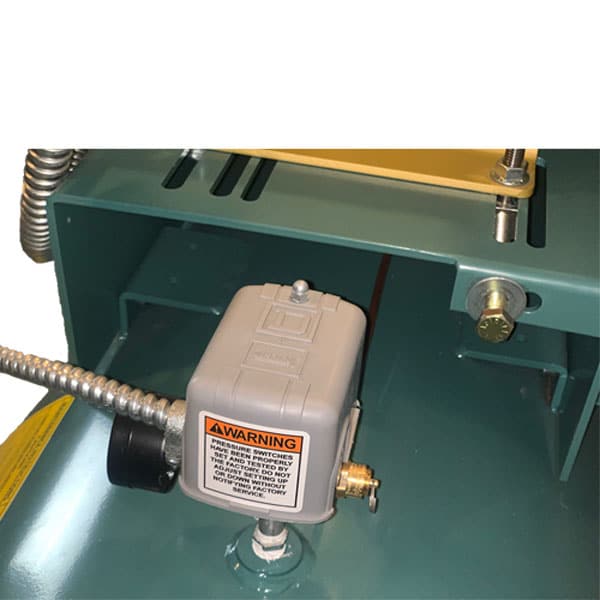

UL approved pressure switch
OSHA approved totally enclosed belt guard
ASME approved safety relief valve
ASME approved discharge air service valve
Slow V-belt drive
Factory filled lubricant
Ultra Pack

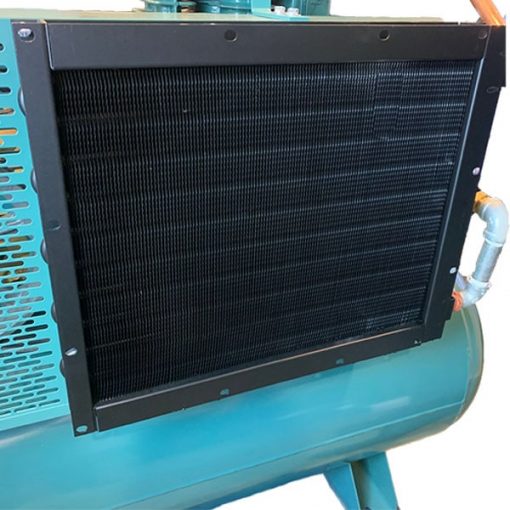

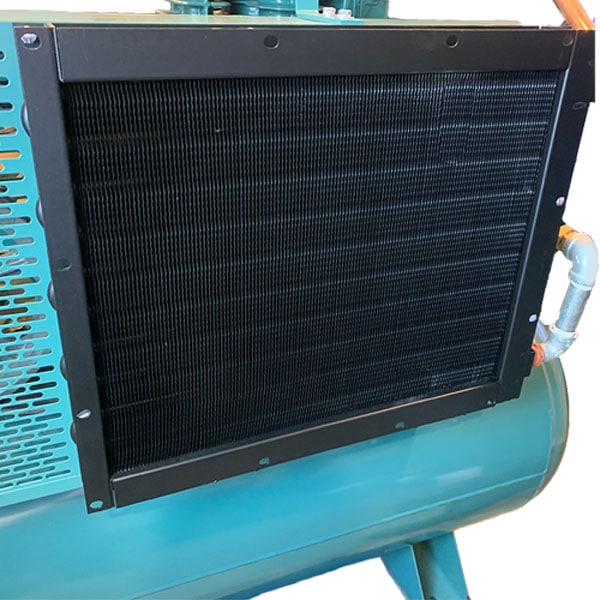

Air-cooled aftercooler

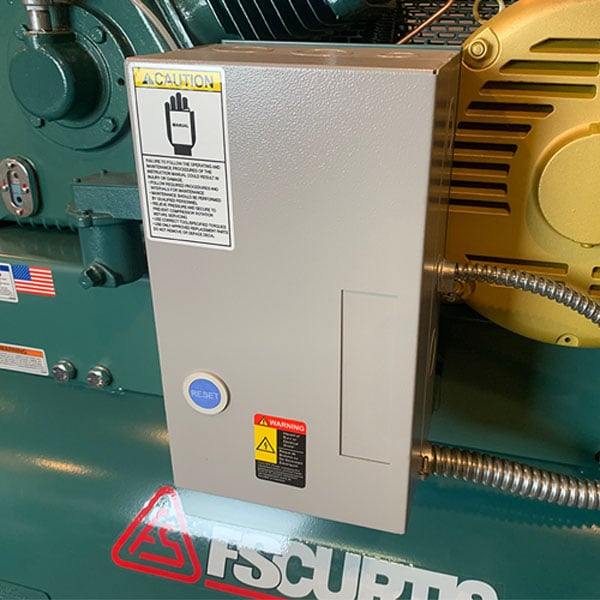

Magnetic motor starter (Simplex)
Alternator panel (Duplex)
Dual control (10-15HP Simplex)

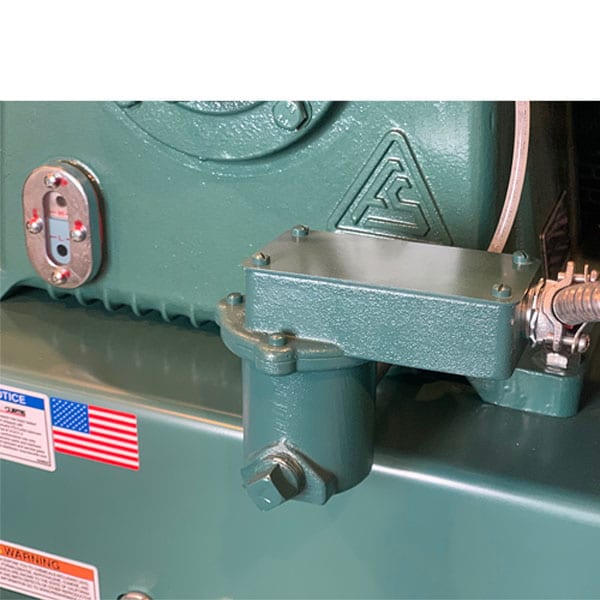

Low oil level shutdown

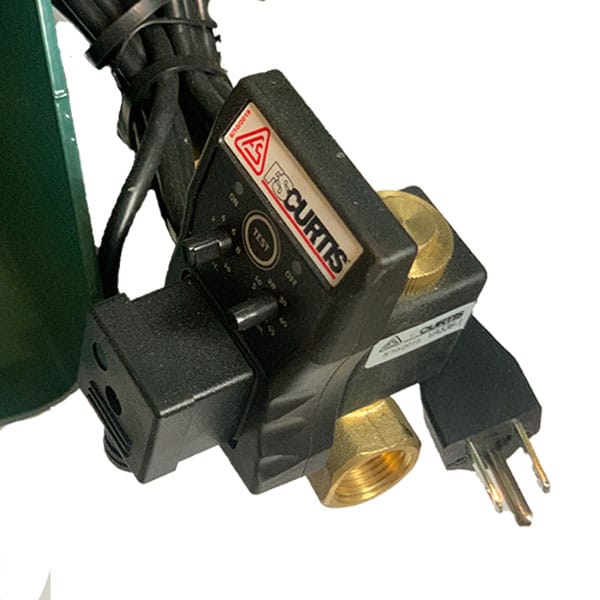

Automatic tank drain

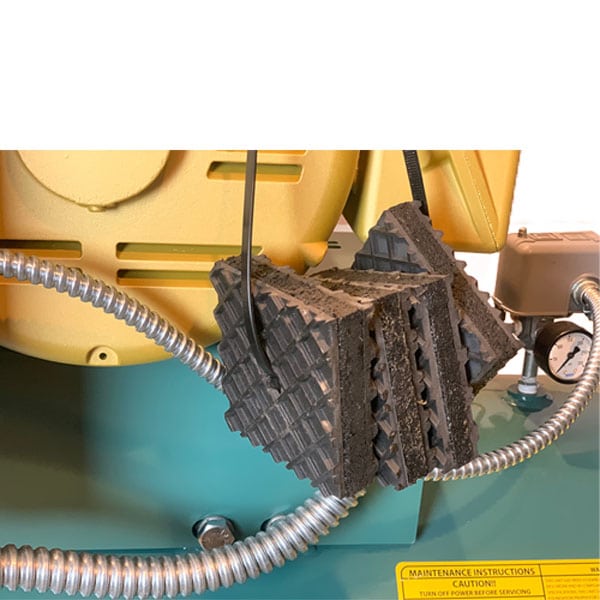

Tank isolator pads
No Start-up Kit Required! Factory-filled with RC-1000 lubricant

Weight 600 lbs
Dimensions 72 × 36 × 56 in
Capacity

1 – 19 CFM

Horsepower

5 HP

Tank Size

80 Gallons

Brand

Curtis
