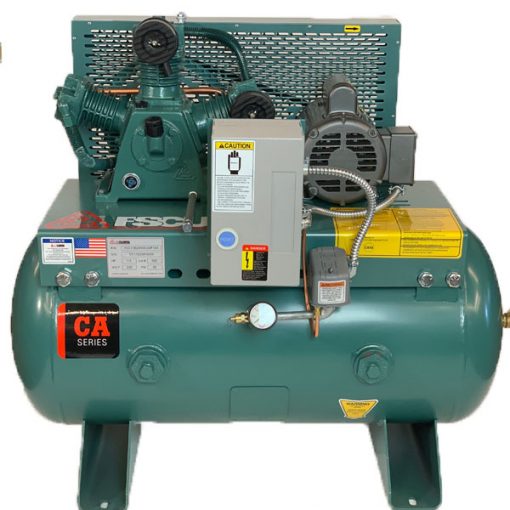

Curtis 1.5HP 30 Gallon 1Phase Simplex 3SG5 E23 115-260V

SKU: 100000032916 Category: Tags: , ,

Get Quote

Free Shipping

Ships Factory Direct

FS Curtis Climate Control Series 3SG5, 1.5 HP, 4.1CFM 80PSI, 1/60/260 Volt, E23 Pump, 30 Gallon Horizontal Tank, Climate Control Air Compressor

FSCURTIS Climate Control Compressors provide clean, dry air for instrument control equipment. Available in Simplex and Duplex models.

Standard Equipment includes: Large intake filter silencer, ASME National Board Stamped receiver, ASME safety relief valve, pressure gauge, receiver condensate drain valve, discharge line check valve, discharge line check valve, receiver shut-off valve, v-belt drive, NEMA motors and pressure switches, OSHA totally enclosed steel belt guard, crankcase lubrication level indicator, and pressure switch operated automatic start and stop control (Set 80 PSI).

Optional Accessories for the Simplex includes: Magnetic motor starters with overload protection and on/off switch, discharge air coalescer filters, low oil level shutdown, automatic condensate traps, air-cooled aftercoolers, refrigerated dryers, isolator pads, spring isolators, and PRV station.

Optional Accessories for the Duplex includes: Magnetic motor starters with overload protection and on/off switch, discharge air coalescer filters, low oil level shutdown, automatic condensate traps, air-cooled aftercoolers, refrigerated dryers, isolator pads, spring isolators, PRV station, and alternator panels-provides equal utilization of compressors to minimize maintenance downtime.

Features:

  • Splash lubricant system
  • Horizontal ASME air receiver
  • UL approved pressure switch
  • OSHA approved totally enclosed belt guard
  • ASME approved safety relief valve
  • ASME approved discharge air service valve
  • Slow V-belt drive
  • Oil level sight indicator
  • Manual condensate tank drain valve
  • Premium Efficiency Motors (3-phase 1HP and up only)
  • Large metal intake filter-silencers
  • Pressure switch
  • Magnetic starter included
  • Tank shut off valve
  • Dial read-out pressure gauge indicator
  • Factory filled lubricant
Weight 1000 lbs
Dimensions 72 × 60 × 48 in
Capacity

1 – 19 CFM

Horsepower

1.5 HP

Tank Size

30 Gallons

Voltage

1/60/115V, 1/60/260V

Brand

Curtis
